BANGLE & RING TURNING MACHINE

Previous Next

BANGLE & RING TURNING MACHINE

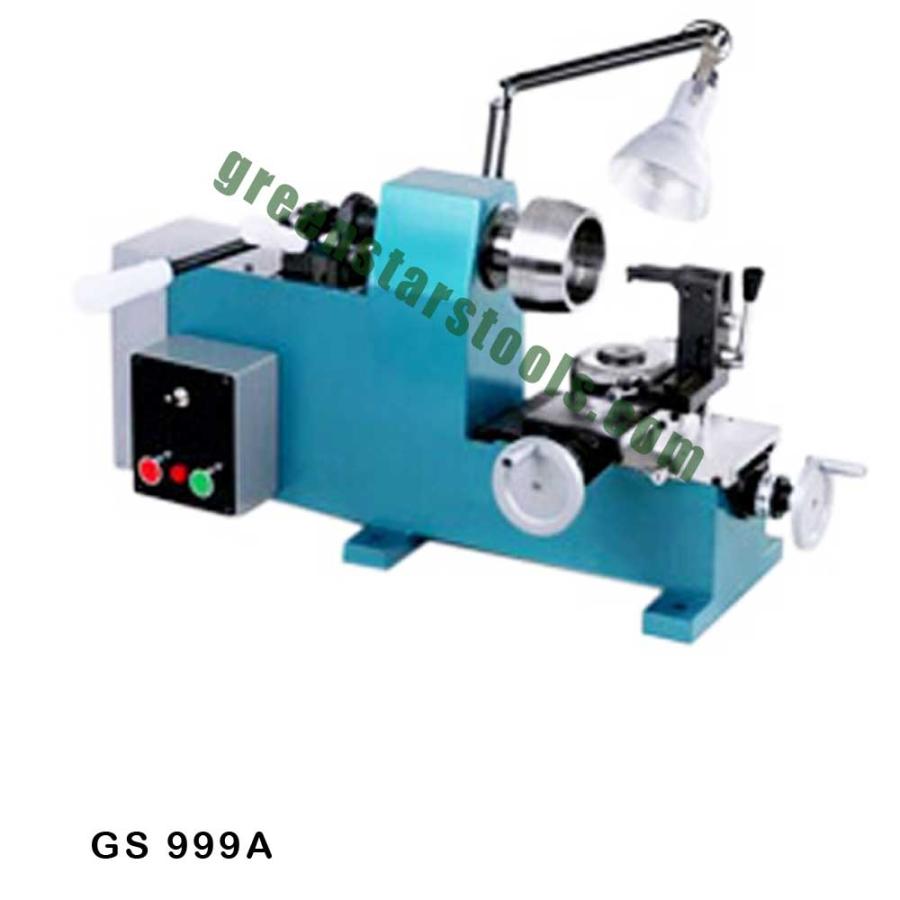

GS 999A

Bangle & Ring Inside / Outside Turning Machine
  • Versatile Jewelry Turning Machine: Perfect for inside, face, and outside turning on bangles, rings, earrings, pendants, and other decorative items.
  • Precision Turning: Handles cylindrical, surface, convex, concave, and D-shaped designs with ease.
  • Swivel Table 180° Rotation: Equipped with 2° graduation for accurate convex, concave, and D-shape turning.
  • Quick Clamping & Tool Post: Features quick clamping device and quick change, quick centering tool post for efficient operation.
  • Complete Accessories Set: Includes bangle & ring collets, inside/outside mandrels, turning sockets, and tool holders.
  • Durable & Compact Design: Manual brake operation, induction motor (1Ph, 50Hz, 230V, 370W, 2800rpm), built-in lamp, compact dimensions 80 x 41 x 35 cm, and lightweight at 65 kg.

Description

The BANGLE & RING TURNING MACHINE is a premium jewelry turning solution designed for precise and efficient finishing of bangles, rings, earrings, pendants, pens, door knobs, buttons, and decorative items. Crafted for Gold, Silver, Brass, Aluminium, and other non-ferrous metals, this machine allows perfect turning inside, outside, and on circular grooves using diamond or carbide tools.

REF NO.
PRODUCT NAME
GS 999A
Bangle & Ring Inside / Outside Turning Machine

ACCESSORIES
Pcs


Bangle Nylon Collate Size: 2” to 2.75” For Inside Turning
 25
Bangle Nylon Collate Size: 2” to 2.75” For Outside Turning
 13
Ring Nylon Collate 16 to 24mm for Inside & Outside Turning
 20
Ring Inside Turning Socket
 1
Ring Outside Turning Mandrel
 1
Ring Inside Turning Tool Holder
 1
SPECIFICATION
STANDARD EQUIPMENTS
  • A Versatile Machine for Inside, Face and Outside turning on Bangles, Rings and other Articles.
  • Turning in Cylindrical, Surface, Convex, Concave and D-shaped.
  • Swivel Table 180° rotative and 2° Graduation for Convex, Concave and D-shape Turning.
  • Quick Clamping device for Articles on Collet Socket.
  • Quick Change and quick Centring Tool Post.
  • Manual operated Brake.
  • Overall Dimension : 80cms. x 41cms. x 35cms.
  • with Wooden Box; 87cms. x 57cms. x 48cms.
  • Weight approx : 65kgs.
  • with Wooden Box; 100 kgs.
  • Induction Motor 1Ph, 50Hz, 230V, 370W, 2800rpm - Pc. 1
  • Built in Machine Lamp, - Pc. 1
  • Bangle inside turning Socket (S83) - Pc. 1
  • Bangle outside turning Mandrel (M35) - Pc. 1
  • Standard Turning Tool Holder, - Pc. 1
  • Necessary Tools Kit
