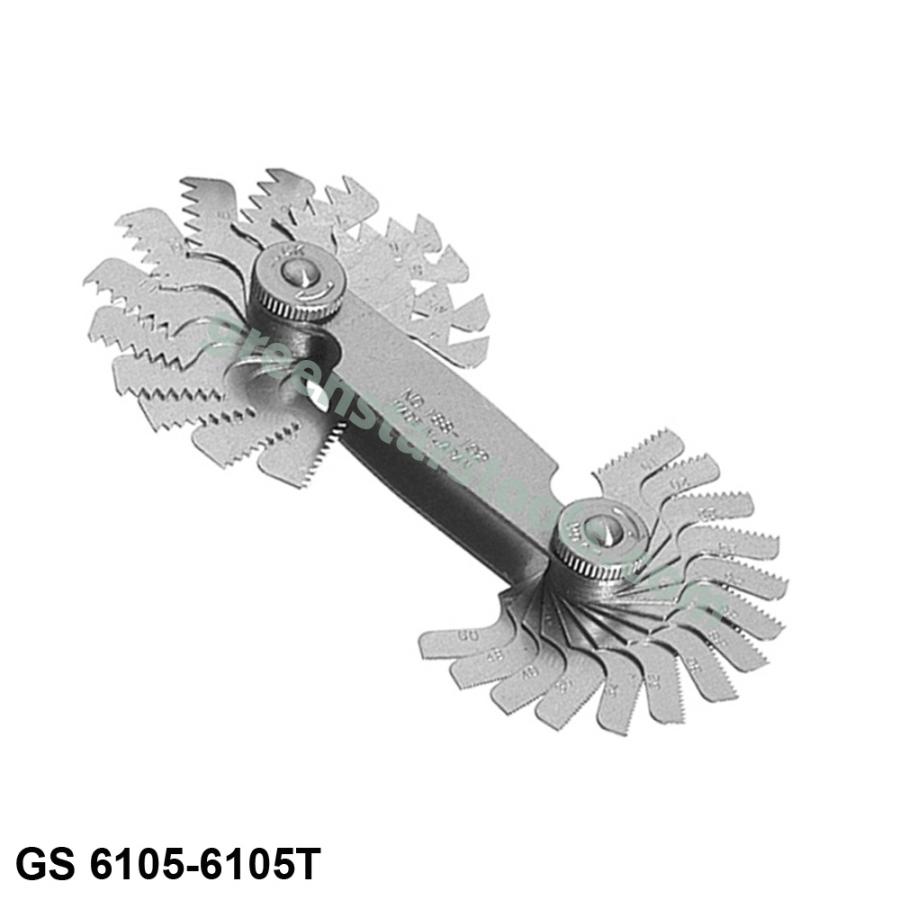

SCREW PITCH GAUGES / THREAD GAUGES

GS 6105 TO GS 6105T

Screw Pitch Gauges / Thread Gauges – 60° & 55° Thread Measuring Tool Set

Wide Thread Range Coverage – Supports 4–84 TPI, 0.25–7.0 mm, including Metric 60°, Whitworth 55°, UNF 60°, BA, and American National 60° threads.
Multiple Leaf Options Available – Models with 12 to 58 leaves for precise thread identification.
Clearly Marked Leaves – Each blade is accurately stamped with pitch size for easy reading and quick selection.
High-Quality Hardened Steel Construction – Ensures durability, corrosion resistance, and long service life.
Combination Thread Sets – Options combining Metric & Whitworth, Metric & American National, and Double Thread Calipers for versatile industrial use.
Compact & Portable Design – Supplied in a protective PVC pouch for safe storage and field use.

Code	Product Name	NO.OF LEAVES	RANGE	THREAD
GS 6105	Screw Pitch Gauges / Thread Gauges	31	4-42	American National 60°
GS 6105A	Screw Pitch Gauges / Thread Gauges	52	4-84	American National 60°
GS 6105B	Screw Pitch Gauges / Thread Gauges	31+24=55	4-42 & 0.25 to 6 mm	Combination of American National 60° And Metric 60° Thread
GS 6105C	Screw Pitch Gauges / Thread Gauges	28	0.25 to 2.5 mm	International Metric Standard 60°
GS 6105D	Screw Pitch Gauges / Thread Gauges	23	0.4 to 7.0 mm	International Metric Standard 60°
GS 6105E	Screw Pitch Gauges / Thread Gauges	28+24=52	4 to 62 & 0.25 to 6.0 mm	Combination of Whitworth 55° & Metric Standard 60°
GS 6105F	Screw Pitch Gauges / Thread Gauges	28	4-62 G	Whitworth 55°
GS 6105G	Screw Pitch Gauges / Thread Gauges	12	0-10 BA	British Association
GS 6105H	Screw Pitch Gauges / Thread Gauges	14	10,11,12,13,14,15,18,20,24,27,28,32,36,40	US -Thread 60°
GS 6105I	Screw Pitch Gauges / Thread Gauges	16	12,14,16,18,20,24,28,32,36,40,44,48,56,64,72,80	UNF-Thread 60°
GS 6105J	Screw Pitch Gauges / Thread Gauges	18	0,5-0,6-0,7-0,75-0,8-1,0-1,25-1,5-1 75-2,0-2,5-3,0-3,5-4,0-4,5-5,0-5,5-6,0	Metric 60°
GS 6105K	Screw Pitch Gauges / Thread Gauges	22	4-4,5-5,6,7,8,9,10,11,12,13,14,16 18,20,22,24,32,40,48,56,64	US-Thread 60°
GS 6105L	Screw Pitch Gauges / Thread Gauges	46	4-62 & 0.5-6 mm	Whitworth 55°,Metric 60°
GS 6105M	Screw Pitch Gauges / Thread Gauges	48	4-62 & 0.4-7 mm	Double thread calipers
GS 6105N	Screw Pitch Gauges / Thread Gauges	6	8,10,11,14,19,28	Whitworth 55°
GS 6105P	Screw Pitch Gauges / Thread Gauges	58	4-62W ,0.25-6mm & 8-28 W	Whitworth 55°, Metric 60
GS 6105Q	Screw Pitch Gauges / Thread Gauges	17	0.5-7 mm	Metric 60°
GS 6105R	Screw Pitch Gauges / Thread Gauges	26	4-60	_
GS 6105T	Screw Pitch Gauges / Thread Gauges	24	0.25-6 mm	Metric 60°

Description

The Screw Pitch Gauges / Thread Gauges are essential measuring instruments used to accurately determine the pitch and profile of screw threads. Designed with International Metric Standard 60°, Whitworth 55°, UNF, and American National thread standards, these gauges ensure reliable measurement across a broad range of applications.Made from premium-grade steel, each leaf is finely machined and clearly marked for quick identification. Available in multiple configurations ranging from 12 to 58 leaves, these gauges are widely used in engineering inspection, machine maintenance, and industrial production environments.
