MORGAN SALAMANDER SUPER CRUCIBLE

MORGAN SALAMANDER SUPER CRUCIBLE

GS 405R-01 TO GS 405R-14

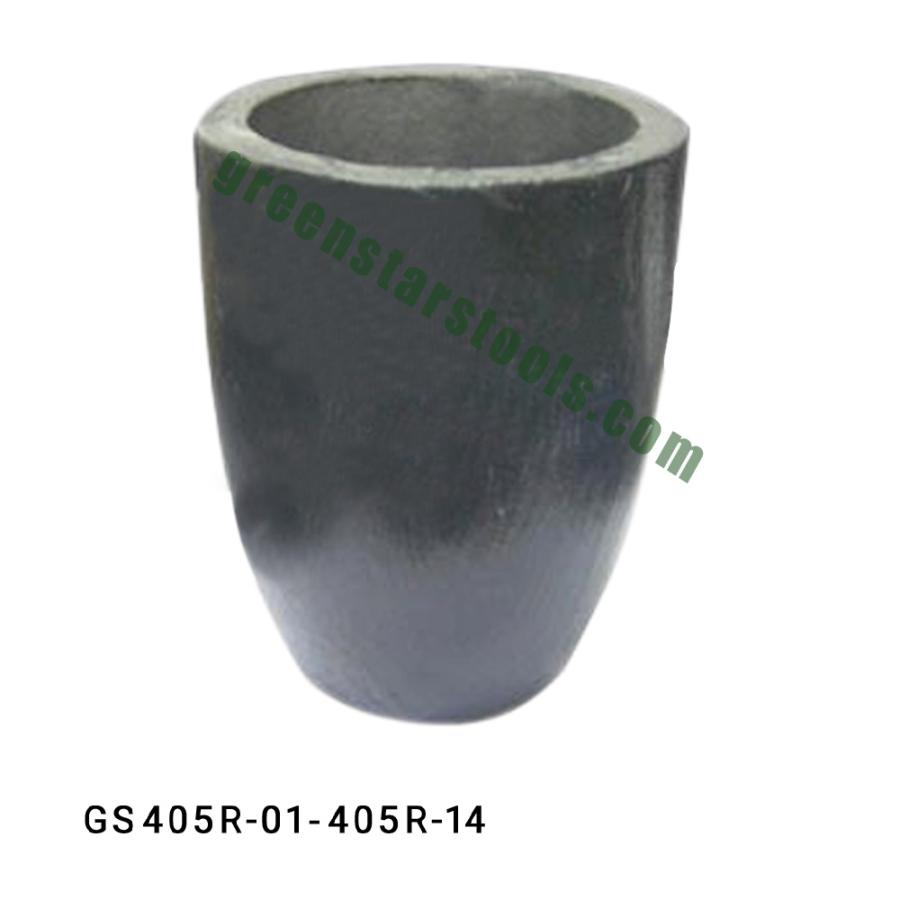

Morgan Salamander Super Crucible

  • High-Quality Ceramic Bond: Made with advanced clay graphite for superior strength and durability.
  • Furnace Compatible: Works efficiently in fuel-fired and induction furnaces for consistent melting.
  • Versatile Use: Suitable for gold, silver, non-ferrous alloys, and some ferrous metals.
  • Superior Performance: Ensures clean melting, high thermal conductivity, and corrosion resistance.
  • High Temperature Stability: Performs reliably at 850°C–1600°C (1562°F–2912°F).
  • Easy Identification: Black-painted surface with clear size and model markings.

  Code Product Name NUMBER QTY. PER BOX TOTAL OUTER DIA. MM. HT- MM. HEIGHT BOTTOM OUTER DIA. MM. GOLD/ METAL APPROX. CAPACITY – KG BRIMFUL CAPACITY – LTR. Quantity
GS 405R-01 Morgan Salamander Super Crucible A-5/0 20 32 35 24 0.2 (Gold) 0.1 (Silver) 0.01
GS 405R-02 Morgan Salamander Super Crucible A-3/0 20 46 52 30 0.5 (Gold) 0.3 (Silver) 0.03
GS 405R-03 Morgan Salamander Super Crucible A-1/0 12 60 67 41 0.56 0.07
GS 405R-04 Morgan Salamander Super Crucible A-1/0 12 68 78 48 1.00 0.13
GS 405R-05 Morgan Salamander Super Crucible A-1 12 79 97 55 1.5 0.16
GS 405R-06 Morgan Salamander Super Crucible A-1.5 12 90 92 55 2.1 0.2
GS 405R-07 Morgan Salamander Super Crucible A-2 12 95 109 61 2.5 0.33
GS 405R-08 Morgan Salamander Super Crucible A-3 8 105 127 70 3.7 0.49
GS 405R-09 Morgan Salamander Super Crucible A-4 8 114 141 76 5.6 0.75
GS 405R-10 Morgan Salamander Super Crucible A-5 6 124 152 86 6.8 0.91
GS 405R-11 Morgan Salamander Super Crucible A-6 6 130 165 95 9.0 1.2
GS 405R-12 Morgan Salamander Super Crucible A-8 4 156 184 108 12.5 1.67
GS 405R-13 Morgan Salamander Super Crucible A-10 4 160 200 110 15.5 2.00
GS 405R-14 Morgan Salamander Super Crucible A-12 4 171 210 121 19.5 2.4

Description

The Morgan Salamander Super Crucible is a high-performance clay graphite crucible designed to deliver exceptional results in metal melting and casting operations. Manufactured with premium ceramic bonded materials, this crucible provides consistent thermal performance, high mechanical strength, and excellent resistance to oxidation and corrosion.These precious metals such as gold and silver, or non-ferrous and ferrous alloys, the Salamander Super ensures clean melting, minimal metal contamination, and efficient heat distribution. Its robust design makes it the trusted choice for both industrial applications and professional metalworkers.Available in multiple sizes (A-5/0 to A-12) with varying capacities ranging from 0.2 kg to 19.5 kg (Gold), this crucible meets diverse production needs while maintaining superior performance standards.
